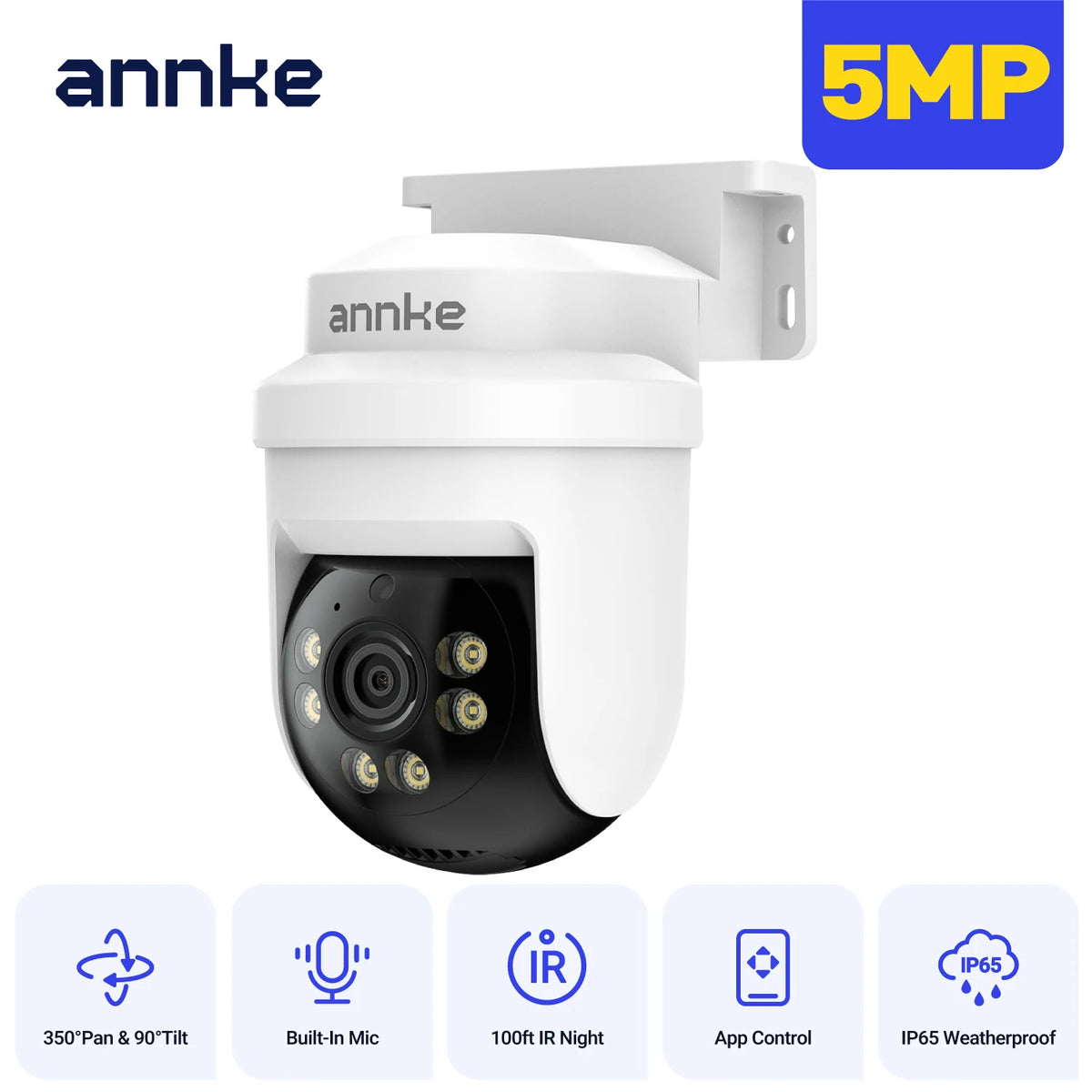

Monitor your entire perimeter day and night using this 5MP PTZ analog camera that captures smooth video and expands visibility automatically when darkness falls.
- You control the motorized pan and tilt mechanisms across 360° horizontally and 90° vertically while a fixed 3.6mm lens delivers crisp close-ups.
- You trigger infrared illumination to track activity up to 30 meters away, leveraging digital wide dynamic range and CMOS imaging filters.
- You capture ambient sound through the built-in microphone and trust the sealed IP65 housing to block dust and moisture during extreme heat.
- You run the dome device on standard DC12V power and connect the feed to any 5MP DVR with coaxial audio support.
Model Number |
CR1FC |
|
|
HD Camera |
Camera |
Video Resolution |
HDTVI 5MP |
Signal system |
20fps |
Image sensor |
Progressive Scan CMOS |
Lens |
3.6mm |
Min.Illumination |
0.02Lux@(F1.2 AGC ON),0Lux with IR on |
Horizontal rotation angle |
350° |
Vertical rotation angle |
90° |
Number of Infra-Red LEDs |
6 |
Night Vision Distance |
Up to 100ft/30m |
DNR |
3D DNR |
Wide Dynamic Range |
Digital WDR |
IR Cut Filter |
Yes |
Audio |
Built-in Mic,one way audio |
Video Output |
HD BNCx1 |
General |
Housing |
Plastic |
Operating Power |
DC12V |
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |
Weatherproof Rating |
IP65 |
Size |
130*85*115mm(L*W*H) |
Weight |
0.57lbs / 260g |
