SPECIFICATIONS

Active Area: 476.64 x 268.11mm

Battery Included: no

Brand Name: HUION

Brightness: 220cd/㎡

Certification: CE

Color: Black

Color Gamut: 120% sRGB

Contrast Ratio: 1000:1

Digital Pen: PW517

Dimension: 546*323*19 - 26.7mm (Without Stand)

Display Color: 16.7M(8bit)

Full Lamination: NO

High-concerned chemical: none

Input Voltage: AC 100-240V, 50/60Hz

Interface Type: USB

LCD Type: IPS

Notice: Kamvas 22 can not work alone, it needs to connect to a computer/laptop/Android device.

OS Support: Windows 7 or later, macOS 10,12 or later Android(USB3.1 GEN1,DP1.2), Linux

Origin: Mainland China

Output Voltage: 12V 3A

Package: Yes

Pen Technology: Battery-Free Electromagnetic Resonance

Pressure Levels: 8192

Report Rate: 266PPS

Resolution Ratio: 5080lpi

Response Time: 14ms

Screen Resolution: 1920x1080

Screen Size(diagonal): 21.5"

Sensing Height: 10mm

Surface Finish: Anti-glare matte film

Tablet Width: 323mm

Tablet length: 546mm

Type: Graphic Tablets,Digital Tablets

Video Port: Three-in-one USB-C, Full-featured Type-C

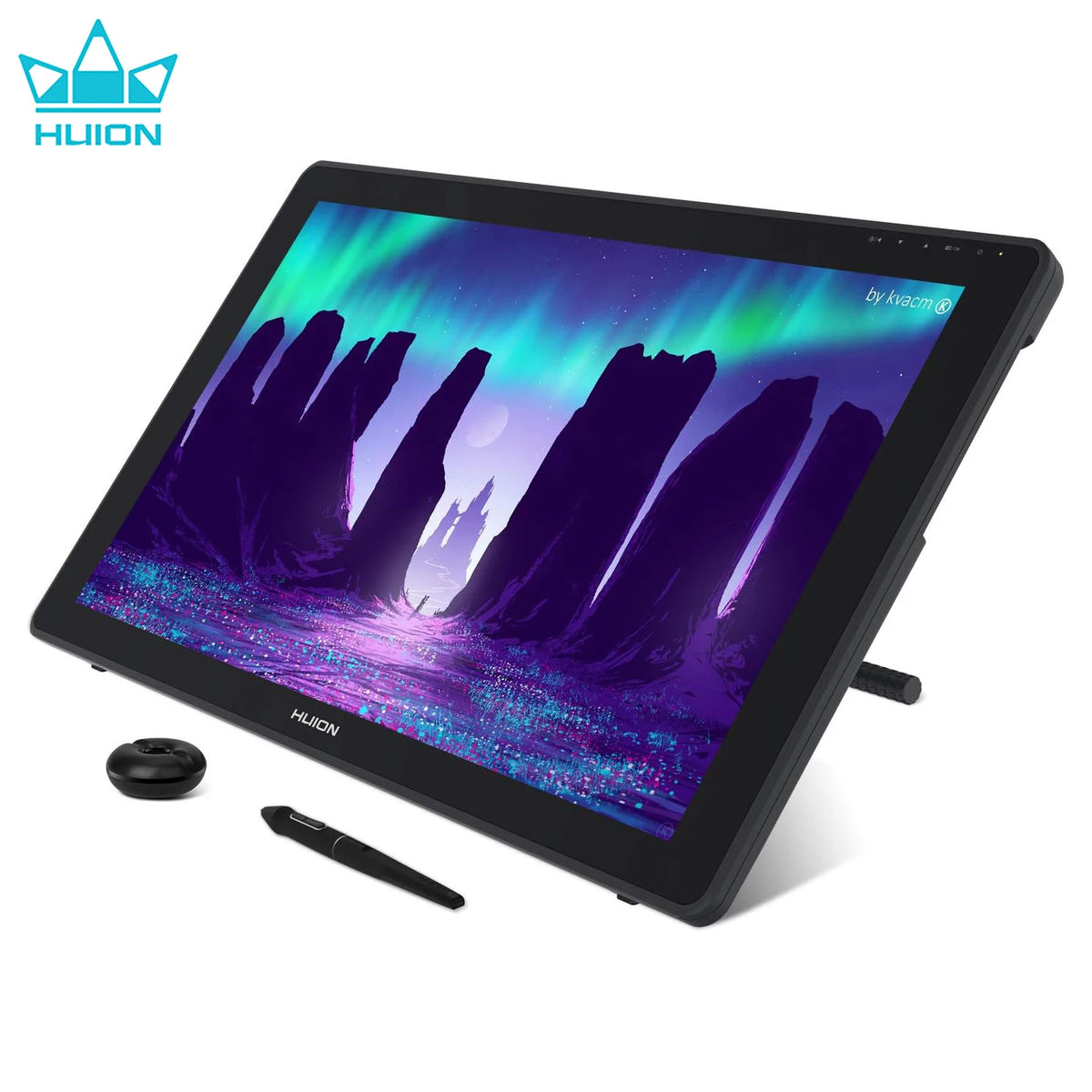

Kamvas 22 Digital tablet with 21.5 inch screen

About this item

• Advanced Pen Technology：benefit from the Huion PenTec3.0, PW517 is optimized with Capacitive Pressure Sensor making it responsive to every pen movement with virtually no lags. Shorten pen nibs and better nib firmness make the pen tip barely bounce back to improve accuracy and reduce offset. Along with 8192 pressure levels, tilt response and lag free tracking, PW517 delivers the most accurate and natural pen performance.

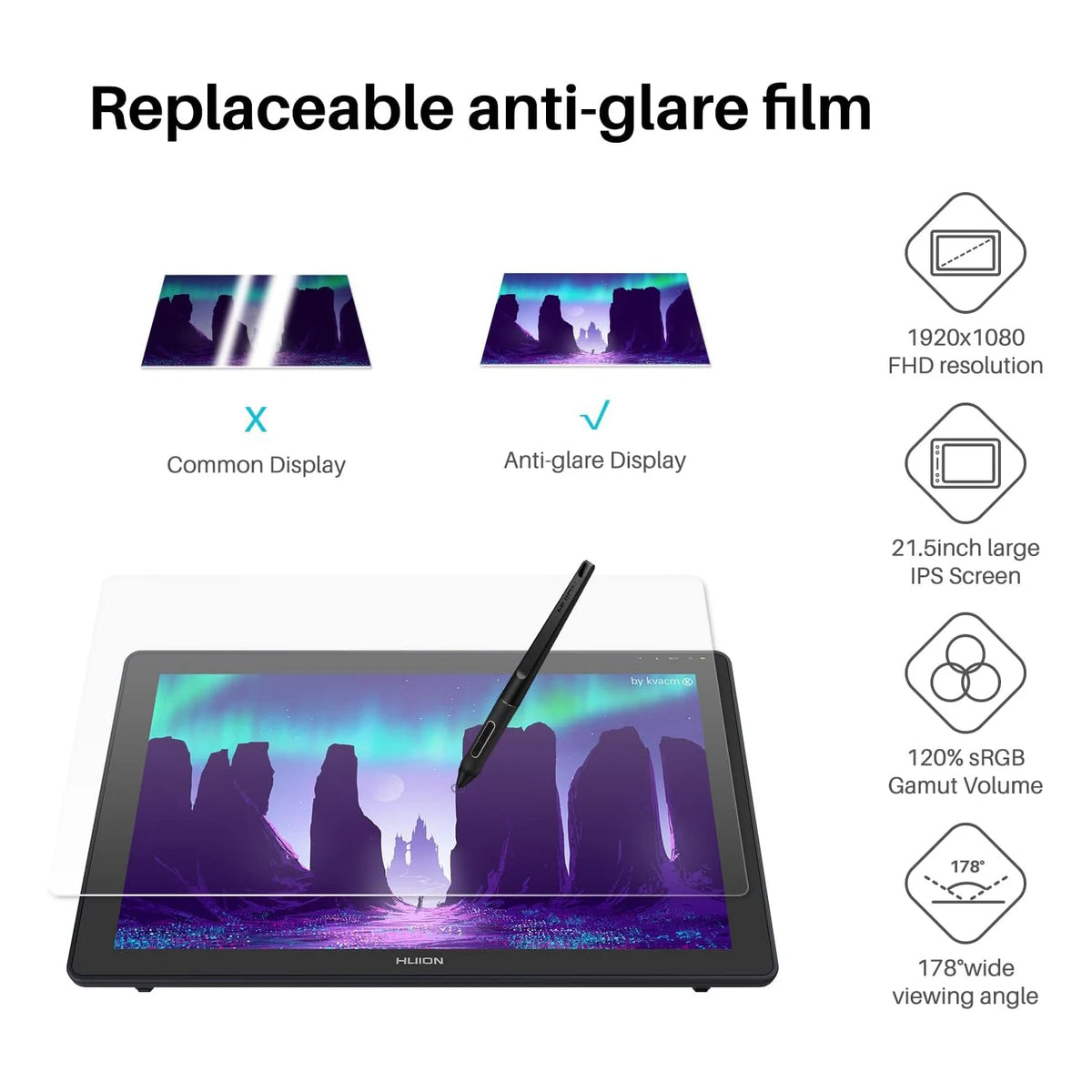

• Stunning 21.5inch Screen: the immersive 21.5inch large screen with 1960x1080p full HD resolution presents your creation in the depth of detail. The pre-applied anti-glare film minimizes glare and distracting reflection. The scratch-resistant surface feeling more like drawing on paper creates a good intuitive drawing experience.

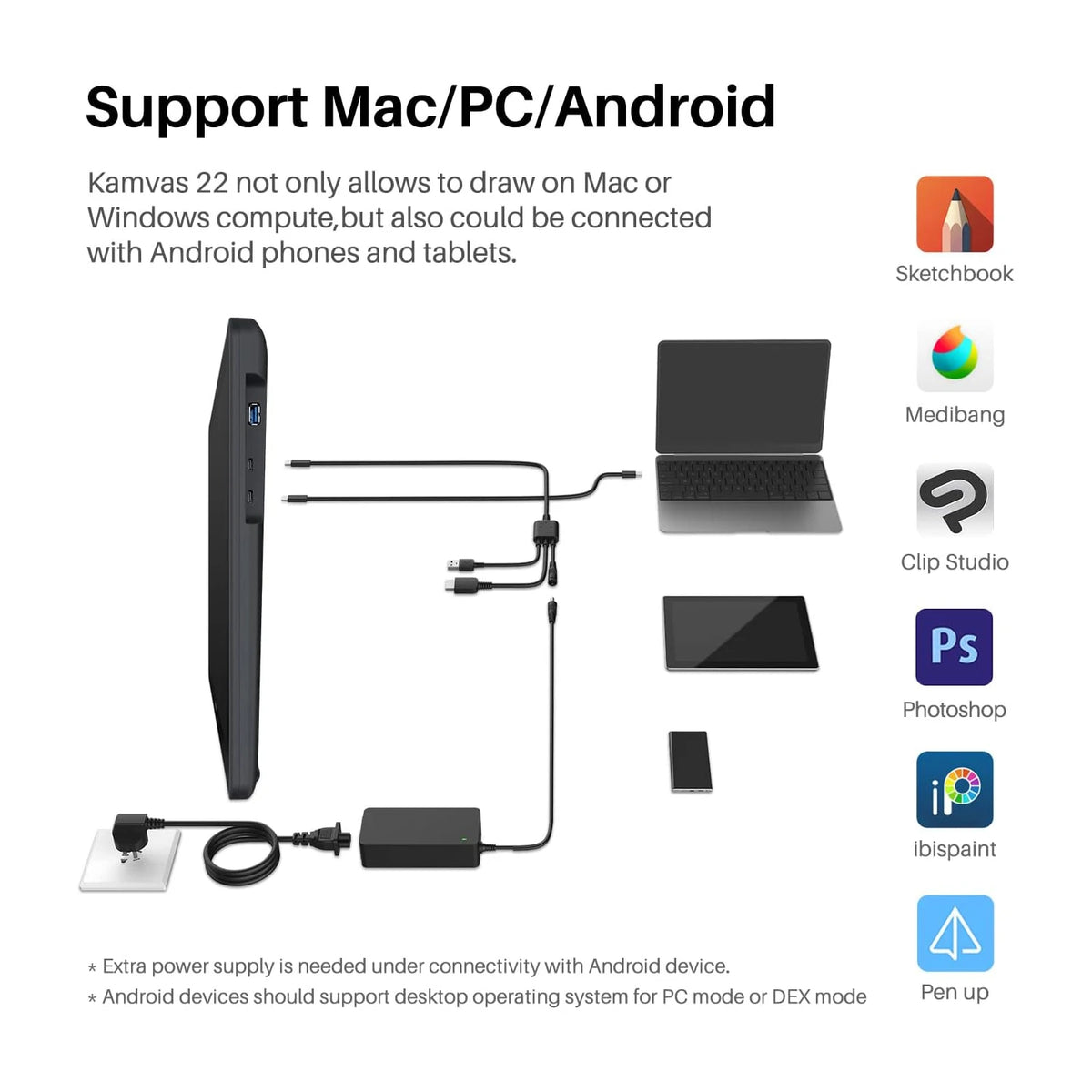

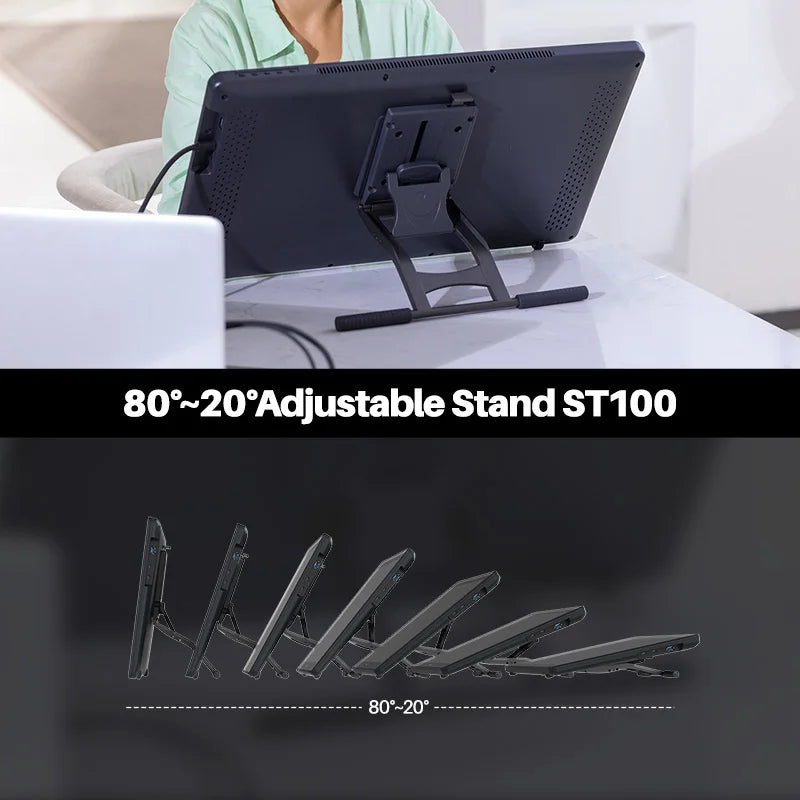

• Easy Cable Connection: you can connect Huion Kamvas 22 to your computer easily with the included convenient 3in1 Type-C cable or with the optional full-featured Type-C to Type-C cable. A USB-A port is added to connect flash disk, keyboard, mouse or other devices. The user-friendly connection design will bring you better convenience and higher efficiency.An adjustable stand is included to help you get into the perfect position to start your creation.

• Work with Mac/Windows/Android: Kamvas 22 could work with Mac(MacOS 10.12 or later) and Windows computer(Windows 7 or later), plus, you can also connect it to your android smartphones and tablets with full-featured USB-C cable to release your inspiration whenever and wherever you want. Note：Your android device is supposed to support USB3.1 GEN1 or DP 1.2.

• Vibrant Color Performance: boating with 120%s RGB color gamut volume and 16.7 millions colors, Kamavs 22 offers you exceptionally vivid and lifelike color performance. 178° wide view angle provides crisp pictures for your artwork from different angles. It is compatible with most drawing program such as Sketchbook, MediBang, etc.


The 120% sRGB color gamut enables your Kamvas 22 to better present the colors applied to your works.

Note:

* The USB-C to USB C cable does not include in the package of Kamvas 22.
* Please make sure the USB-C port of your devices must support USB 3.1 Gen1, DP 1.2 and above standards if you want to use the USB-C to USB-C cable for connection.

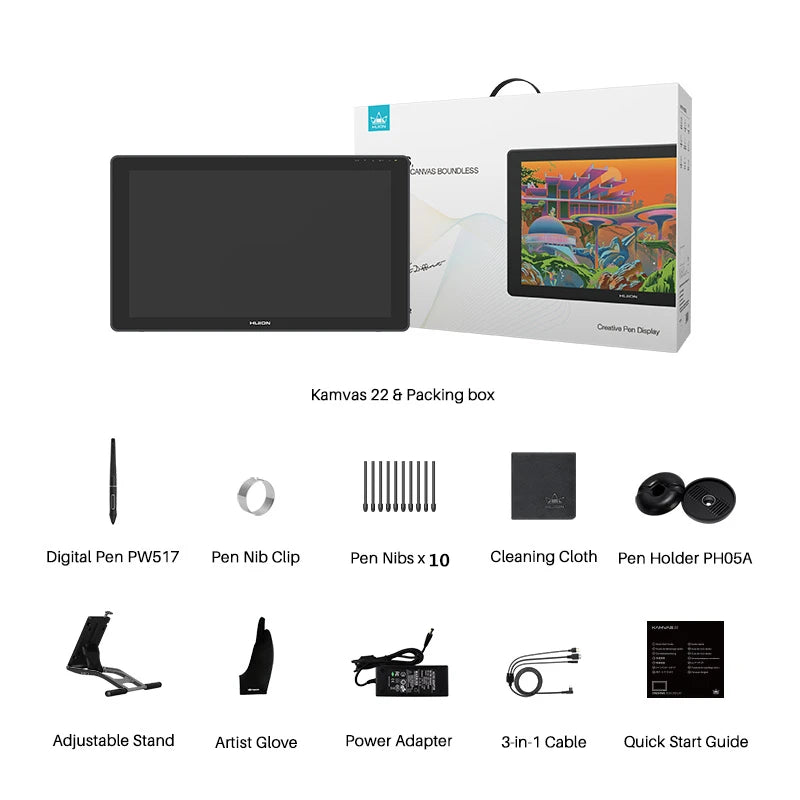

In the box: Kamvas 22, Adjustable Stand ST100A, Battery-free Pen PW517, 10 Standard Pen Nibs, Pen Holder, 3-in-1 Cable, Pen Nib Clip,Power Adapter, Artist Glove,Cleaning Cloth, Quick Start Guide.

FAQs

What's the difference between Huion Kamvas 22 and Huion Kamvas 22 Plus?

Kamvas 22 Plus equips a full-laminated screen and Chemically etched Anti-glare glass, while Kamvas 22 does not. Kamvas 22 Plus also has a higher color gamut. (140% sRGB vs 120% sRGB)

Do I need to connect the Huion Kamvas 22/Kamvas 22 Plus to a computer to make it work?

Yes, the Huion Kamvas 22 and Kamvas 22 Plus are drawing monitors. You need to connect the monitor to a computer/laptop/Android device to make it work.

Does the Huion Kamvas 22/Kamvas 22 Plus have touch input?

No, the Kamvas 22 and Kamvas 22 Plus do not have touch input.

Does Huion Kamvas 22/Kamvas 22 Plus have an anti-glare surface?

The Kamvas 22 is equipped with an anti-glare matte film, and the Kamvas 22 Plus is equipped with anti-glare glass.

What's the difference between Anti-glare film and etched Anti-glare glass?

The anti-glare glass and anti-glare matte film both offer the anti-glare by the diffusion effect. AG glass has better wear and corrosion resistance, AG film has the advantage of being lightweight and replaceable.

What is Huion PenTech 3.0 technology?

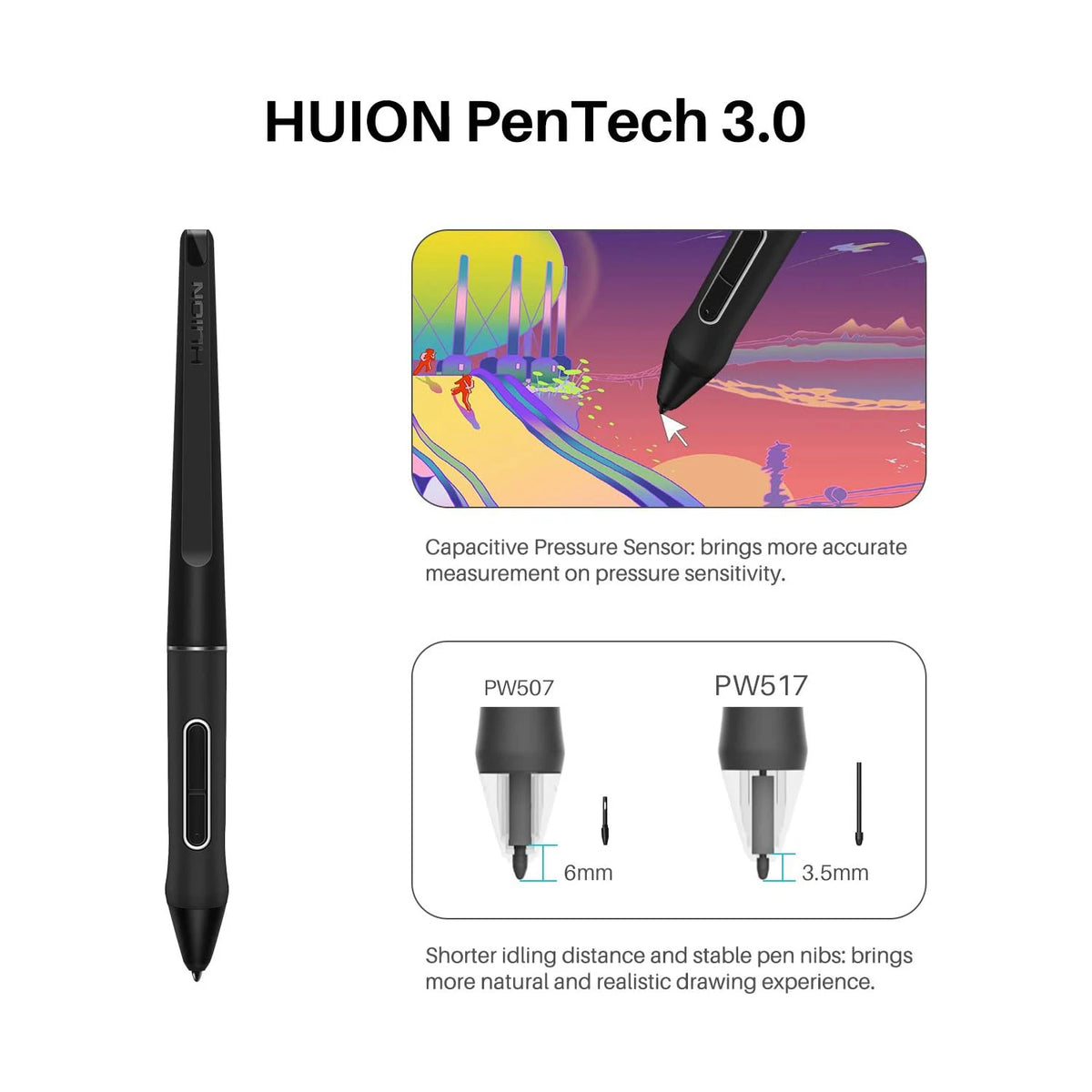

To achieve a better user experience, Huion first brought PenTech 3.0 with the pen display Kamvas 13. The new generation pen uses a new model of Senor. The senior position is lower from 6mm to 3.5mm. A lower sensor position means quicker response and reduces the idling distance from 0.8mm to 0.3mm. The pen nib shape is also optimized for better accuracy. With the new PenTech 3.0, the pen now follows every pen movement tightly.

Can I use a USB-C to USB-C cable from other brands on the Huion Kamvas 22?

Yes. Since the USB-C to USB-C cable is not included in the package of Kamvas 22, you can purchase a full-featured USB-C to USB-C cable from other brands. But please make sure the full-featured USB-C to USB-C cable you purchased at least supports USB3.1 GEN1 data transfer protocol and DP1.2.

What size of VESA mounting should I use with the Huion Kamvas 22/Kamvas 22 Plus?

75mm x 75mm
